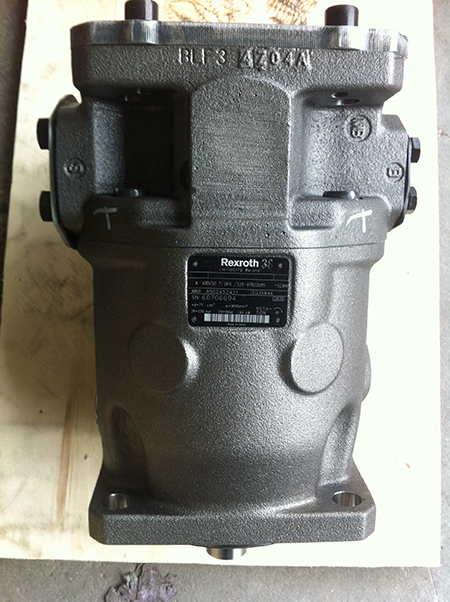

A10VS071DRS/32R-VPB22U99力士乐柱塞泵
    发布时间: 2020-05-20 14:21

轴向柱塞泵一般用于机床,冶金,锻压,矿山及起重机械的液压传动系统中,特别广泛地应用于大功率的液压传动系统中。为了提高效率,在应轴向柱塞泵一般都由缸体,配油盘,柱塞和斜盘等主要零件组成。

A10VS071DRS/32R-VPB22U99力士乐柱塞泵

轴向柱塞泵一般用于机床,冶金,锻压,矿山及起重机械的液压传动系统中,特别广泛地应用于大功率的液压传动系统中。为了提高效率,在应轴向柱塞泵一般都由缸体,配油盘,柱塞和斜盘等主要零件组成。缸体内有多个柱塞,柱塞是轴向排列的,即柱塞的中心线平行于传动轴的轴线,因此称它为轴向柱塞泵。但它又不同于往复式柱塞泵,因为它的柱塞不仅在泵缸内做往复运动,而且柱塞和泵缸与斜盘相对有旋转运动。柱塞以一球形端头与斜盘接触。在配油盘上有高低压月形沟槽,它们彼此由隔墙隔开,保证一定的密封性,它们分别与泵的进油口和出油口连通。斜盘的轴线与缸体轴线之间有一倾斜角度。
德国博世Rexroth力士乐柱塞泵
柱塞泵 齿轮泵 叶片泵 双联泵 定量泵 变量泵
电磁阀 换向阀 溢流阀
REXROTH A10VSO型变量柱塞泵31R系列
开式回路 RC 92 711/09.00
规格28....140
31R系列
额定压力280 bar
峰值压力 350 bar
此类型泵特点:
— 用于液压开式回路的斜盘结构轴向柱塞变量泵
— 流量正比于驱动转速和排量,并能通过调节斜盘倾角实 现无级变量
— ISO标准的安装法兰
— 法兰连接符合SAE米制
— 有两个壳体泄油孔
— 优良的吸入性能
— 允许连续运行压力可达280 bar
— 低噪声
— 长寿命
— 驱动轴能承受轴向及径向负载
— 高的功率/重量比
— 广范围的多种控制形式
— 控制响应时间短
— 采用通轴结构,可用于多回路系统
型号选型参考详解:
举例型号:A10VSO18DFR1/31R-PPA12N00
A10VS→斜盘式变量泵,此系列工业驱动用,公称压力 28MPa,最高压力35MPa;
O →运行方式,此系列用于开式回路系统;
18 →排量规格此型号为18m3(另有10,28,45,71,100,140等常见规格排量)
DFR1 →控制机构,(DG表示两位控制直接驱动;DR(G)表;示压力控制远程控制;DFR(1)压力/流量控制 ;带有1指在X油路无小孔;DFLR压力/流量/功率控制;FHD流量 控制,和先导压力有关带压力控制;FE1**流量电控;DFE1**压力/流量电控;ED电液压力控制);
31 →产品系列
R →转动方向(R顺时针,L逆时针)
P →密封(P指带FKM轴封的NBR(丁晴橡胶,符合DIN ISO 1629),V指FKM(佛橡胶,符合DIN ISO 1629))
P →轴端(P指带键直轴 DIN 6885,S指花键轴SAE,R指花键轴SAE(较高的通轴驱动转矩));
A →安装法兰孔(A指ISO 2孔,B指ISO 4孔);
12 →工作油口连接,{压力油口B 吸油口S}在相反方向 ,SAE油口米制固定螺钉;
N00 →通轴,(N00无通轴驱动;有通轴驱动带轴向泵,齿轮泵回径向柱塞泵KB2,K51,KB3,K01等等)
REXROTH轴向柱塞泵型号,价格和货期:
A10V010DR/52R-PPA14N00 现货
A10V028DFR1/31R-PSC12N00 现货
A10VSO45DFR1/31R-PPB12N00 现货
A10VSO100DFR1/31R-PPB12N00 现货
A10VSO45DFR1/32R-PPB12N00 现货
A10VSO100DFR1/32R-PPB12N00 现货
A10VSO071DFR1/32R-VPB12N00,
A10VSO140DFR1/32R-VPB12N00,
A4VSO125DR/30R-PPA13N00,
A4VSO180DR/30R-PPA13N00,
A4VSO250DR/30R-PPA13N00,
A10VSO18DFR1/31R-PPA12NOO
A10VSO28DFR1/31R-VPA12N00
A10VSO45DFR1/32R-PPB12N00
A10VSO71DFR1/32R-VPB22U99
A10VSO100DFR1/32R-VPB12N00
A10VSO140DRS/32R-VPB12N00
A4VSO125DR/30R-PPB13N00
A4VSO180DR/30R-PPB13N00
A4VSO250DR/30R-PPB13NOO
A10VSO140DRS/32R-VPB12N00
A10VSO140DRS/32R-VPB22U99
A10VSO100DFR1/32R-VPB12N00
A10VS071DFR1/32R-VPB22U99
A10VSO45DFR1/32R-VPB12N00
A10VSO28DFR1/31R-PPA12N00
A10VSO18DFR1/31R-PPB12N00
A10VS018DFR1/31R-PPB12N00
A10VS018DR/31R-PPA12N00
A10VSO18DR/31R-PPA12N00
A10VSO18DFR1/31R-PPA12N00
A10VSO18DFR1/31R-PPB12NOO
A10VS018DFR1/31R-PPB12NOO
A10VSO18DR/31R-PPA12N00

A10VSO28DR/31R-PPA12N00
A10VS028DR/31R-PPA12N00
A10VO28DR/31R-PSC12N00
A10VSO28DRF1/31R-PSA12N00
E-A10VSO28DFR1/31R-PPA12N00
A10VSO28DFR1/31R-PPA12N00
A10VS028DFR1/31R-PPA12N00
A10VSO28DFR/31R-PSA12N00
A10VSO28DR/32R-PPA121V00
A10VO28DFR1/31L-PSC62N00
A10VO28DFR1/31R-PSC62N00

A10VS045DR/31R-PPA12N00
A10VSO45DR/31R-PPA12N00
A10VS045DFR1/31R-PPA12N00
A10VSO45DFR1/31R-PPA12N00
E-A10VSO45DFR1/31R-PPA12N00
A10VSO45DR/52R-PC12N00
A10VO45DFR1/31R-PSC62K02
A10VSO45DFR1/32R-PPB12N00

A10VSO71DFR1/31R-PPA12N00
A10VS071DFR1/31R-PPA12N00
A10VSO71DFR1/31R-PPA12KB5
A10VSO71DFR/31R-PSC62K07
A10VSO71DFR1/31R-PPA12N00
A10VS071DFR1/31R-PPA12N00
E-A1OVSO71DFR1/31R-PPA12N00
E-A1OVS071DFR1/31R-PPA12N00
A10VSO71DFR1/31R-PPA12N00
A10VSO71DFR1/32R-VPB22U99
A10VSO71DFR1/31R-PPB12NOO
EA10VSO71DR/31R-PPA12N00
A10VSO71DR/31R-PPA12N00

A10VSO100DR/31R-PPA12N00
A10VS0100DR/31R-PPA12N00
A10VSO100DR/31R-VPA12N00
A10VS0100DR/31R-VPA12N00
A10VSO100DFR1/31R-PPA12N00
A10VS0100DFR1/31R-PPA12N00
A10VSO100DR/31R-PPA12N00
A10VSO100DFR1/32R-VPB12N00
A10VS0100DFR1/32R-VPB12N00
A10VSO100DFR1/32R-PPB12N00
A10V0100DR/31R-PSC11N00
A10VS0100DR/31R-PTA12N00

A10VSO140DG/32R-VPB12N00
A10VSO140DR/32R-VPB12N00
A10VSO140DRF/32R-VPB12N00
A10VSO140DRS/32R-VPB12N00
A10VSO140DFE1/32R-VPB12N00
A10VSO140DRG/32R-VPB12N00
A10VSO140ED/32R-VPB12N00
A10VSO140ED/32R-VPB22U99
A10VSO140DG/32R-VPB22U99
A10VSO140DR/32R-VPB22U99
A10VSO140DRF/32R-VPB22U99
A10VSO140DRS/32R-VPB22U99
A10VSO140DFE1/32R-VPB22U99
A10VS140DRG/32R-VPB22U99
A10VSO140DFR1/32R-VPB22U99
